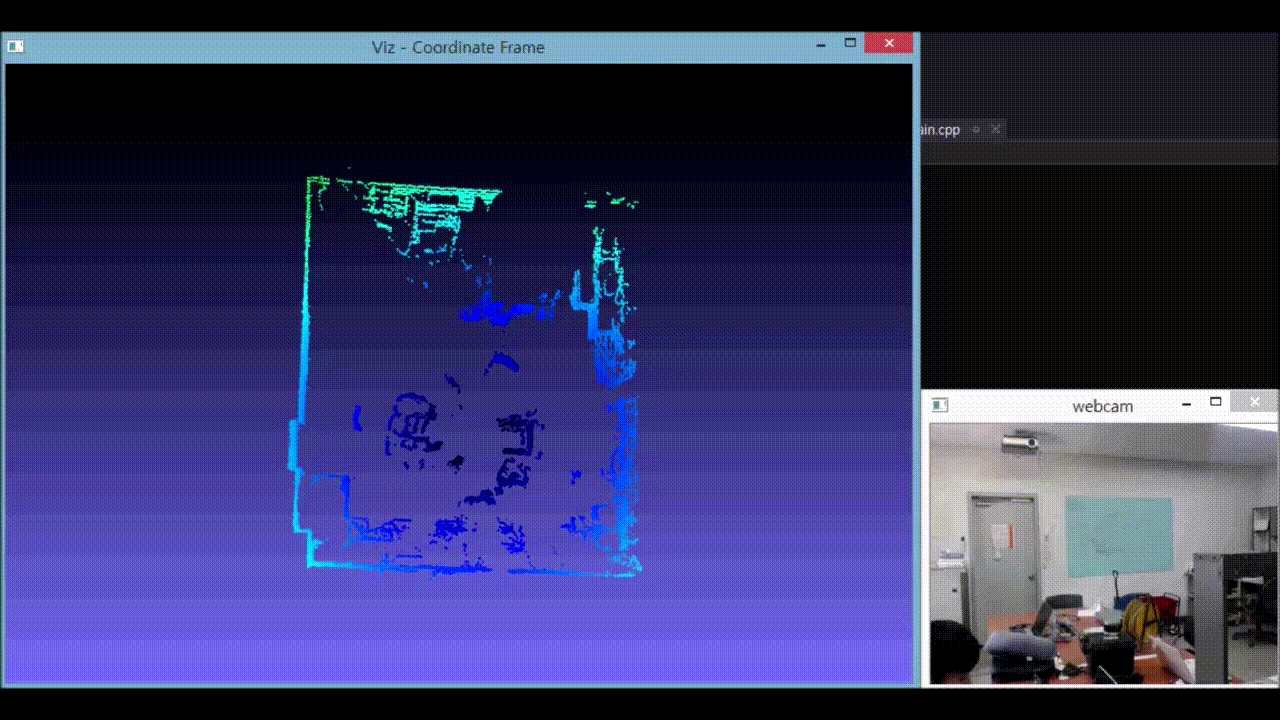

# 시각화툴 ## 시각화 툴 ### ROS & Rviz ```python $ roscore $ rosrun tf2_ros static_transform_publisher 0 0 0 0 0 0 world_frame kinect_link $ rosrun pcl_ros pcd_to_pointcloud table.pcd 0.1 _frame_id:=kinect_link cloud_pcd:=kinect/depth_registered/points $ rosrun rviz rviz ``` ### Cloud Compare > [홈페이지](http://www.danielgm.net/cc/), [블로그](http://www.pointcloud.jp/blog_n23/) ```python $ sudo snap install cloudcompare $ sudo snap refresh --edge cloudcompare $ cloudcompare.CloudCompare ``` * 플러그인 : * 플러그인 so파일을 `/snap/cloudcompare/current/lib/cloudcompare/plugins` * 프로그램 실행 - help - about plugins * ### Paraview > [홈페이지](https://www.paraview.org/), [PCL Plugin](https://www.paraview.org/Wiki/ParaView/PCL_Plugin), [YouTube데모](https://www.youtube.com/watch?v=BZBQXcBvHW0) ``` # apt 설치 apt-get install paraview # 코드 설치 # paraview 다운로드 : https://www.paraview.org/download/ # 권장 버젼 : ParaView v4.1.0+, PCL v1.5.1+ $ tar xvfz ParaView-3.14.1-Source.tar.gz $ cd /home/ParaView-3.12.0 $ mkdir build $ cd build $ ccmake .. #OR $cmake-gui Make sure that BUILD_SHARED_LIBS is set to ON Configure and generate files $ make # 실행 파일 : /home/ParaView-3.12.0/build/bin ``` * [ParaView/PCL Plugin/Download And Build Instructions](https://www.paraview.org/Wiki/ParaView/PCL_Plugin/Download_And_Build_Instructions) : ParaView 3.14.1 + PCL Plugin v1.0 * [ROS Manual](http://wiki.ros.org/Industrial/Tutorials/PCLParaview): Paraview 3.12 + PCL Plugin 1.0 (PCL 1.5) * A plugin to enable PCL functionality in ParaView: [Paraview 4.1](https://www.paraview.org/paraview-downloads/download.php?submit=Download\&version=v4.1\&type=binary\&os=Linux\&downloadFile=ParaView-4.1.0-Linux-64bit-glibc-2.3.6.tar.gz) + [PCL Plugin v1.1](https://github.com/Kitware/PCLPlugin) (PCL = 1.5.1) * [ROS Manual](http://wiki.ros.org/Industrial/Tutorials/PCLParaview): Paraview 3.12 + PCL Plugin 1.0 (PCL 1.5) ### [Velodyne 3D-Lidar Visualization Program](https://github.com/windowsub0406/3D-Lidar-visualization-VLP-16) ![](https://github.com/windowsub0406/3D-Lidar-visualization-VLP-16/raw/master/images/velodyne.gif) ## PCL-Cpp 제공 툴 > [PCLVisualizer](http://pointclouds.org/documentation/tutorials/pcl_visualizer.php), [PCL Visualization overview](http://pointclouds.org/documentation/overview/visualization.php) 설치 ``` $ sudo apt install pcl-tools $ pcl_viewer [파일명.pcd] ``` ``` The viewer window provides interactive commands; for help, press 'h' or 'H' from within the window. Syntax is: pcl_viewer . where options are: -bc r,g,b = background color -fc r,g,b = foreground color -ps X = point size (1..64) -opaque X = rendered point cloud opacity (0..1) -shading X = rendered surface shading ('flat' (default), 'gouraud', 'phong') -position x,y,z = absolute point cloud position in metres -orientation r,p,y = absolute point cloud orientation (roll, pitch, yaw) in radians -ax n = enable on-screen display of XYZ axes and scale them to n -ax_pos X,Y,Z = if axes are enabled, set their X,Y,Z position in space (default 0,0,0) -cam (*) = use given camera settings as initial view (*) [Clipping Range / Focal Point / Position / ViewUp / Distance / Field of View Y / Window Size / Window Pos] or use a that contains the same information. -multiview 0/1 = enable/disable auto-multi viewport rendering (default disabled) -normals 0/X = disable/enable the display of every Xth point's surface normal as lines (default disabled) -normals_scale X = resize the normal unit vector size to X (default 0.02) -pc 0/X = disable/enable the display of every Xth point's principal curvatures as lines (default disabled) -pc_scale X = resize the principal curvatures vectors size to X (default 0.02) -immediate_rendering 0/1 = use immediate mode rendering to draw the data (default: disabled) Note: the use of immediate rendering will enable the visualization of larger datasets at the expense of extra RAM. See http://en.wikipedia.org/wiki/Immediate_mode for more information. -vbo_rendering 0/1 = use OpenGL 1.4+ Vertex Buffer Objects for rendering (default: disabled) Note: the use of VBOs will enable the visualization of larger datasets at the expense of extra RAM. See http://en.wikipedia.org/wiki/Vertex_Buffer_Object for more information. -use_point_picking = enable the usage of picking points on screen (default disabled) -optimal_label_colors = maps existing labels to the optimal sequential glasbey colors, label_ids will not be mapped to fixed colors (default disabled) ``` (Note: for multiple .pcd files, provide multiple -{fc,ps,opaque} parameters; they will be automatically assigned to the right file) Usage example: > pcl\_viewer -multiview 1 {AAA.pcd} {BBB.pcd} {CCC.pcd} The above will load the partial\_cup\_model.pcd file 3 times, and will create a multi-viewport rendering (-multiview 1). * [point cloud visualization with jupyter/pcl-python/and potree](https://www.youtube.com/watch?v=s2IvpYvB7Ew): YouTube데모 * : medical images * * --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://pcl.gitbook.io/tutorial/appendix/visualization-tools.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
